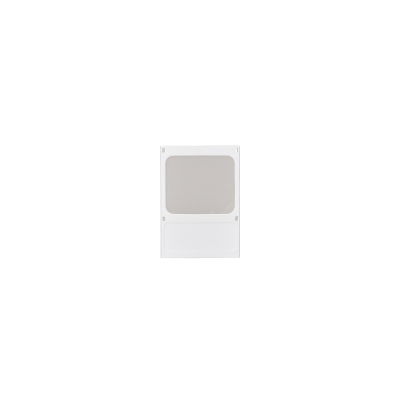

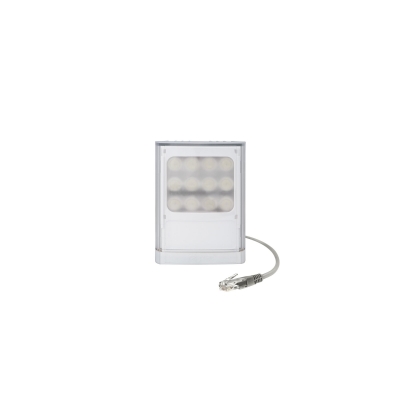

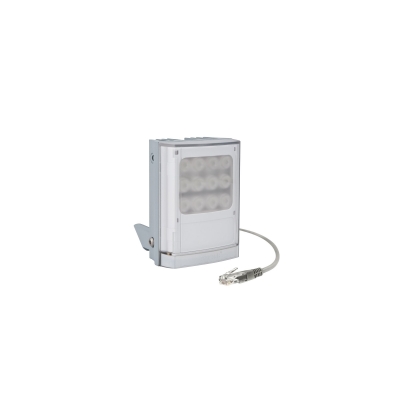

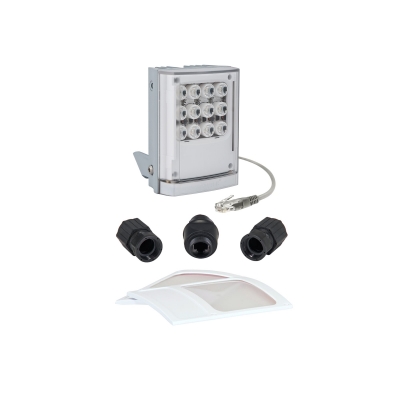

VARIO 2 - VAR2-PoE-w4-1 Medium Range White-Light PoE Illuminator

VARIO 2 - VAR2-PoE-w4-1 Medium Range White-Light PoE Illuminator




VARIO2 PoE is the next generation of Infra-Red and White-Light illuminators from RayLED

PoE Infra-Red Illuminators


The VARIO2 series of White-Light PoE Illuminators is designed to provide dedicated lighting for network cameras. Designed for internal and external applications VARIO2 PoE offers an easy plug-and-play solution for quick lighting integration into an existing network infrastructure. With no PSU required, installation is as simple as plugging in the PoE enabled network cable. Incorporating all standard VARIO family features, including the VARIO interchangeable lens system and hot-spot reduction technology (HRT), VARIO2 PoE w4 illuminators produce outstanding night-time images with maximum distances up to 110m (361ft).


PoE Lighting
Plug and Play into Existing Infra-structure
No PSU Required
IP66 Rated
VARIO Interchangeable Lens System
Angles 10-120 degrees from 1 product
Hot-spot Reduction Technology (HRT)


Max Distance: 110m (361ft)
Angles and Max Distances:
Input: 12-24V AC/DC
10°x10° - 110m (361ft)
35°x10° - 65m (213ft)
60°x25° - 35m(115ft)
80°x30° - 25m (82ft)
120°x50° - 18m (59ft)
Input: PoE
Beam Shape: Elliptical with HRT
(Hot Spot Reduction Technology)
Beam Angle System: VARIO interchangeable lens system
Consumption: 24W
LED Type: Platinum Elite SMT LEDs
Number of LEDs: 12
Power Output (Luminous Flux):
Wavelength: White-Light
