VARIO 2 - VAR2-i6-2 Long Range Infra-Red Illuminator

VARIO 2 - VAR2-i6-2 Long Range Infra-Red Illuminator




858.20

VAR2-i6-2
+
Specifications:
Distances:
Guide:


VARIO2 PoE is the next generation of Infra-Red and White-Light illuminators from RayLED

PoE Infra-Red Illuminators



OVERVIEW

VARIO2 is the next generation of Infra-Red and White-Light illuminators from Raytec. Using the latest PLATINUM Elite SMT LEDs, VARIO2 allows cameras to generate longer illumination distances using less power. VARIO2 features an interchangeable lens system with Hot-spot Reduction Technology to deliver highly even illumination where it is most needed. With the optional hand-held remote control, VARIO2 also makes installation and commissioning quicker, easier and safer. The VARIO2 i6-2 Adaptive Illumination Infra-Red series delivers maximum distances up to 282m (925ft).

KEY FEATURES

Low Voltage Infra-Red Illuminators
PLATINUM Elite SMT LED Technology

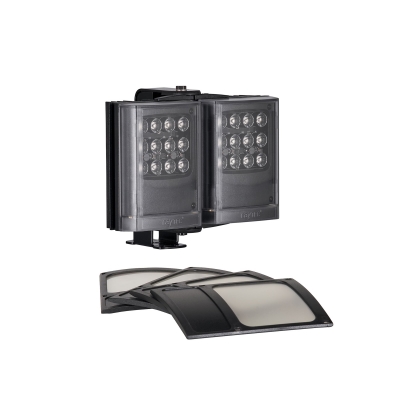

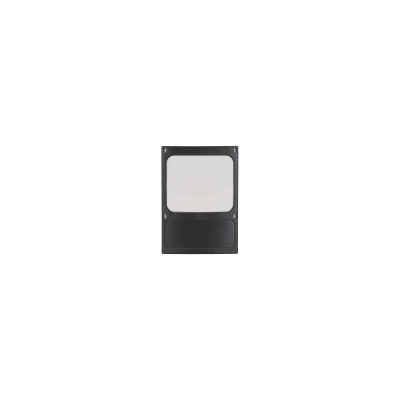

VARIO Interchangeable Lens System
Angles 10-120 degrees from 1 product
Hot-spot Reduction Technology (HRT)

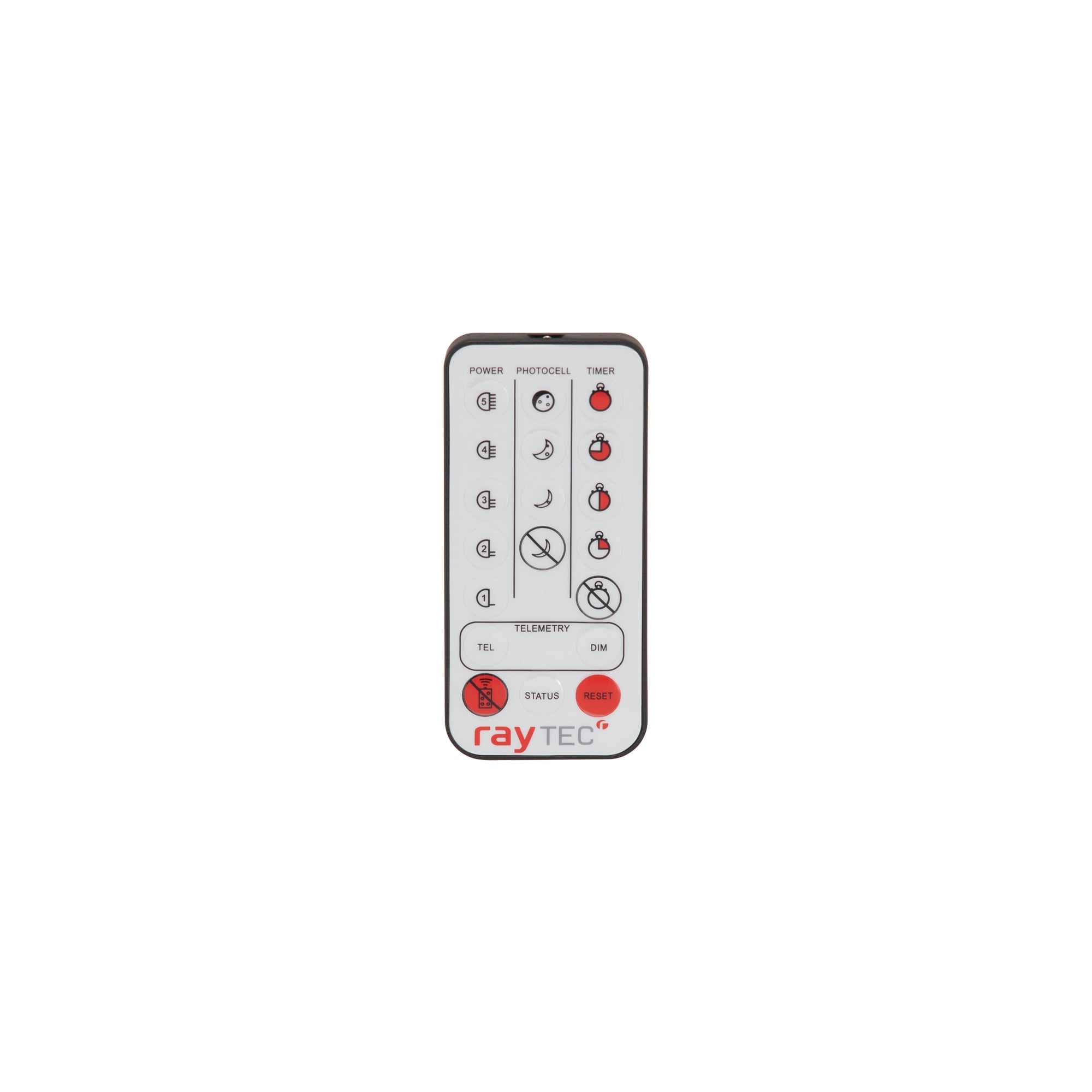

VARIO Remote Control (optional)
Adaptive Illumination
Advanced Security Settings

SPECIFICATIONS

Max Distance:282m (925ft)
Angles and Max Distances:
10°x10° - 282m (925ft)
35°x10° - 169m (554ft)
60°x25° - 99m (325ft)
80°x30° - 71m (233ft)
120°x50° - 42m (138ft)
Input: 12-24V AC/DC
Beam Shape: Elliptical with HRT
(Hot Spot Reduction Technology)
Beam Angle System: VARIO interchangeable lens system
Consumption: 50W
LED Type: Platinum Elite SMT LEDs
Number of LEDs: 24
Wavelength: 850nm
