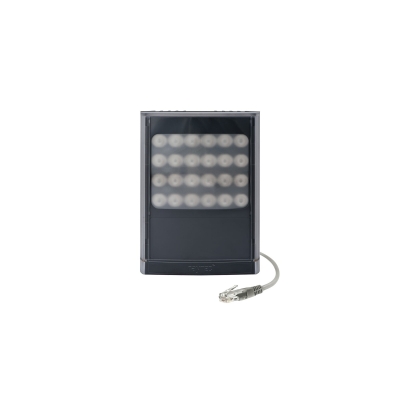

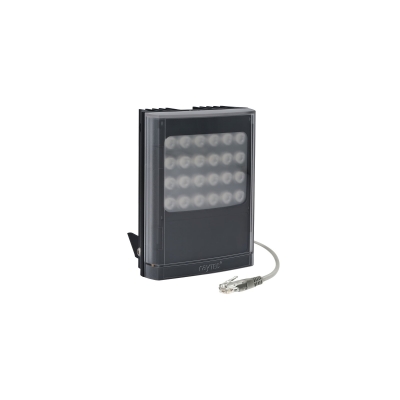

VARIO 2 IP PoE - VAR2-IPPoE-i8-1 Long Range Infra-Red Network Illuminator

VARIO 2 IP PoE - VAR2-IPPoE-i8-1 Long Range Infra-Red Network Illuminator




743.40

VAR2-IPPOE-i8-1
+
Specifications:
Distances:
Guide:


VARIO2 PoE is the next generation of Infra-Red and White-Light illuminators from RayLED

PoE Infra-Red Illuminators



OVERVIEW

RayLED's award winning range of network illuminators is available in both Infra-Red and White-Light, providing dedicated IP lighting for network cameras. VARIO2 IP allows for remote set up and operation of your lighting scheme from anywhere on the network 24/7 via web interface, VMS or directly with camera applications. Users have live control or automatic control over their lighting at all times, to respond to incidents in real time and to fine-tune surveillance images. VARIO2 IP i8 series delivers long range Infra-Red illumination with maximum distances up to 350m (1148ft), via 60W PoE++ or low voltage power (24V DC).

KEY FEATURES

Dedicated IP Lighting for Network Cameras
PLATINUM Elite SMT LED Technology

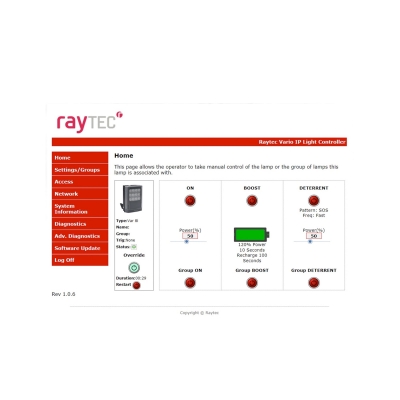

Integrated Web Interface
API for Platform Integration

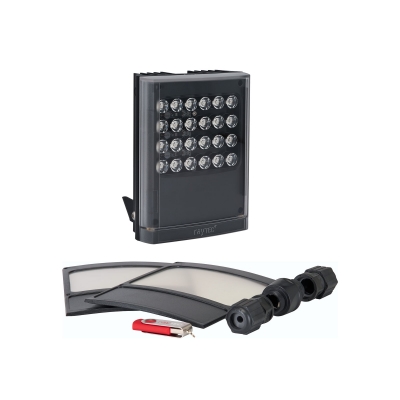

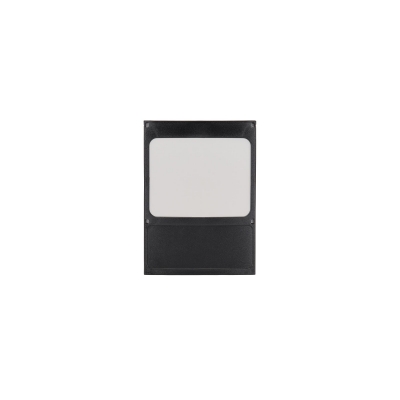

VARIO Interchangeable Lens System
Angles 10-120 degrees from 1 product
Hot-spot Reduction Technology (HRT)

SPECIFICATIONS

Max Distance: 350m (1,148ft)
Angles and Max Distances:
10°x10° - 350m (1,148ft)
35°x10° - 165m (541ft)
60°x25° - 95m (312ft)
80°x30° - 70m (230ft)
120°x50° - 45m (148ft)
Input: PoE or 24V DC
Beam Shape: Elliptical with HRT
(Hot Spot Reduction Technology)
Beam Angle System: VARIO interchangeable lens system
Consumption: 48W
LED Type: Platinum Elite SMT LEDs
Number of LEDs:
Wavelength: 850nm (940nm options available)
