VARIO 2 HYBRID - VAR2-hy4-1 (IR + WL)

VARIO 2 HYBRID - VAR2-hy4-1 (IR + WL)




343.00

VAR2-hy4-1
+
Specifications:
  Guide:

VARIO 2 HYBRID - VAR2-hy4-1 - Product Information

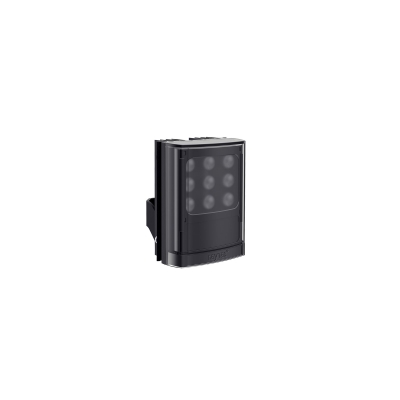

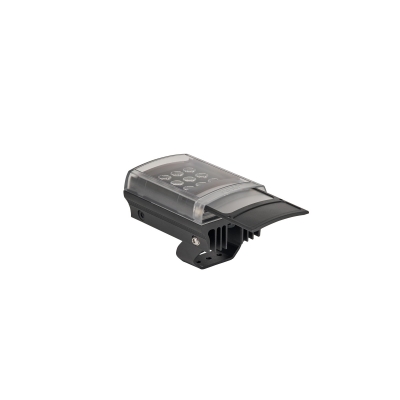

VARIO2 Hybrid illuminators use PLATINUM Elite twin-core SMT LED technology to deliver all the performance of a stand-alone Infra-Red and a stand-alone White-Light illuminator in a single, fully integrated two-in-one solution. The Infra-Red illumination can be used for general surveillance whilst the White-light can be used as a deterrent, or to deliver additional scene information upon activation. Switching from Infra-Red to White- Light illumination on-demand is easy, via a volt free switch for external devices or alarm inputs. VARIO2 Hybrid features an interchangeable lens system with Hot-spot Reduction Technology to deliver highly even illumination, where it is most needed. With the optional hand-held remote control, VARIO2 Hybrid also makes installation and commissioning quicker, easier and safer. The VARIO2 hy16 series delivers maximum distances up to 130m (427ft) IR & 70m (230ft) WL.

Key Features :

  • Combined Infra-Red & White-Light Illumination in a single panel unit (12/24V)
  • Switch easily and automatically between IR & WL
  • PLATINUM Elite twin-core SMT LED Technology
  • Hot-spot Reduction Technology (HRT)
  • VARIO Interchangeable Lens System

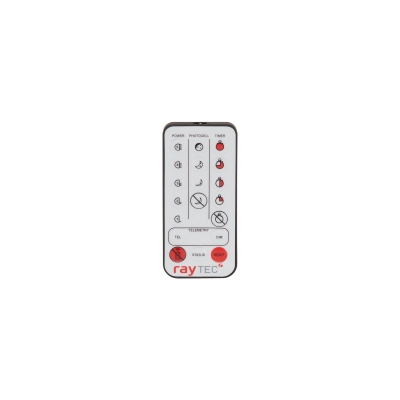

  • VARIO Remote Control (optional)
  • Angles from 10-120 degrees – from 1 product

Specifications :

  • Max Distance: 130m (1476ft)
  • Angles and Max Distances:
  • 10°x10° - 130m (427ft) IR and 70 m (230ft) WL
  • 35°x10° - 70m (230ft) IR and 42m (138ft) WL
  • 60°x25° - 49m (161ft) IR and 22m (72ft) WL
  • 80°x30° - 32m (105ft) IR and 16m (52ft)WL
  • 120°x50° - 22m (72ft) IR and 12m (39ft) WL
  • Input: 24V DC
  • Beam Shape: Elliptical with HRT (Hot Spot Reduction Technology)
  • Beam Angle System: VARIO interchangeable lens system
  • Consumption: 13W
  • LED Type: Platinum Elite twin-core SMT LEDs
  • Number of LEDs: 6 x Infra-Red, 3 x White-Light
  • Power Output (Luminous Flux): 745lm per luminaire
  • Wavelength: 850nm & White-Light (940nm options available)
