VARIO 2 PULSESTAR w96 - PSTR-w96-HV High Intensity Pulsed White-Light Illuminator

VARIO 2 PULSESTAR w96 - PSTR-w96-HV High Intensity Pulsed White-Light Illuminator




2735.60

PSTR-w96-HV
+
Specifications:
Guide:

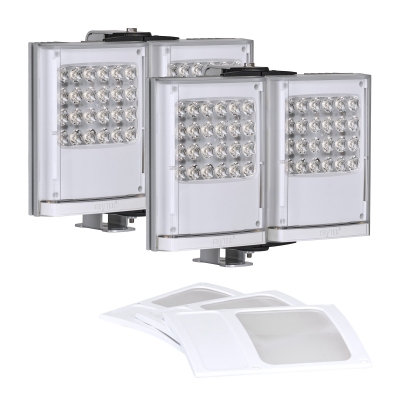

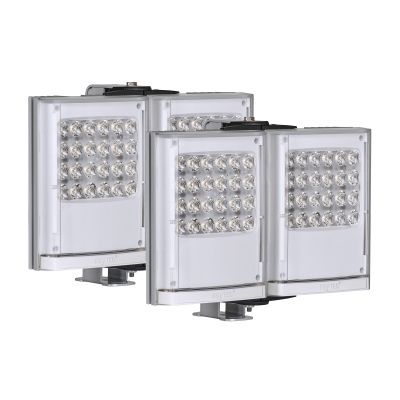

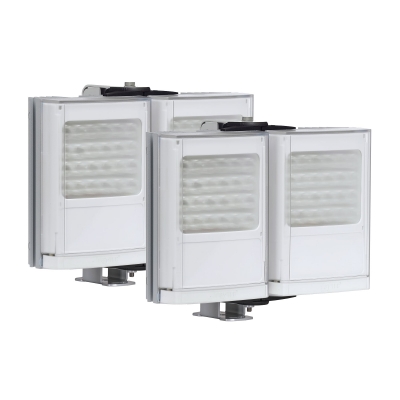

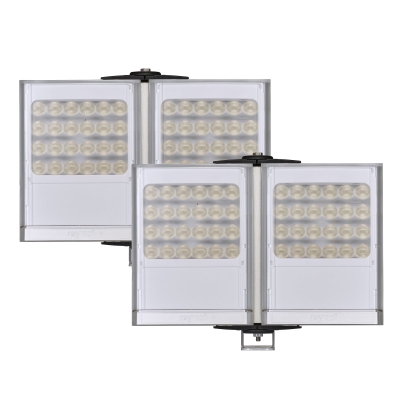

VARIO 2 PULSESTAR w96 High Intensity Pulsed White-Light Illuminator

High Intensity Pulsed White-Light Illuminator



OVERVIEW

PULSESTAR White-Light illuminators deliver powerful pulsed lighting for transport and machine vision applications including ANPR/LPR. With up to 440W of lighting drive power, Platinum Elite twin-core SMT LEDs and illumination that can be pulsed in synchronisation with the camera shutter, they deliver high intensity lighting on-demand to illuminate fast moving objects. All models feature an interchangeable lens system with Hot-spot Reduction Technology for perfect even illumination. Universal 100-230V AC PSU included (24V DC optional).

KEY FEATURES

External Power Supply (included): Universal 100-230V AC PSU (24V DC optional).
High Intensity - up to 440W Lighting Drive Power
Easily link Lighting Pulse with Camera Shutter (TTL - 3.3-24V DC)
Platinum Elite twin-core SMT LEDs
VARIO Interchangeable Lens System
Angles from 10-35 degrees - from 1 product
Extreme Long Life and Low Maintenance
Hot-spot Reduction Technology

SPECIFICATIONS

Angles and maximum distances:
10˚H x 10˚V - Contact RayLED
20˚H x 10˚V - Contact RayLED
35˚H x 10˚V - Contact RayLED

Other angles available on request.

Lighting Drive Power (pulsed): 440W

Input: Universal 100-230V AC PSU included (24V DC options available - Contact RayLED)
Consumption: 44W
Number of LEDs: 96
LED type: Platinum Elite twin-core SMT LEDs
Wavelength: White-Light
Beam Shape: Elliptical with HRT (Hot-Spot Reduction Technology)
Beam Angle System: VARIO Interchangeable Lens System
Typical Pulse Width: 2 ms
Trigger Input: TTL - 3.3 - 24V DC
12V DC Power Output: 1A
Control / Communication: Ethernet
