*** SCROLL DOWN TO SEE ALL DISTANCE CHARTS ***

PRELIMINARY NOTES:

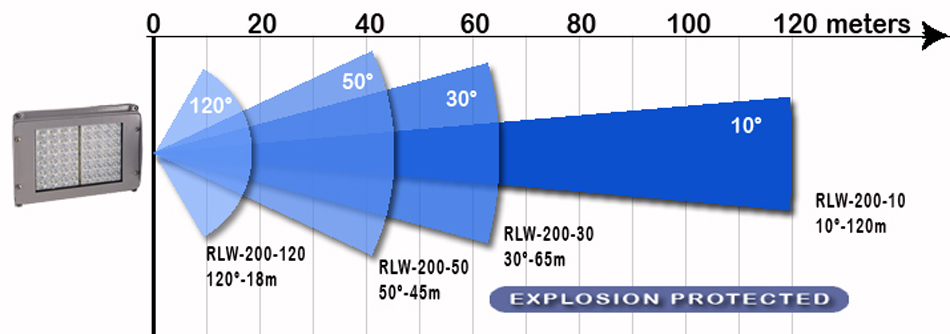

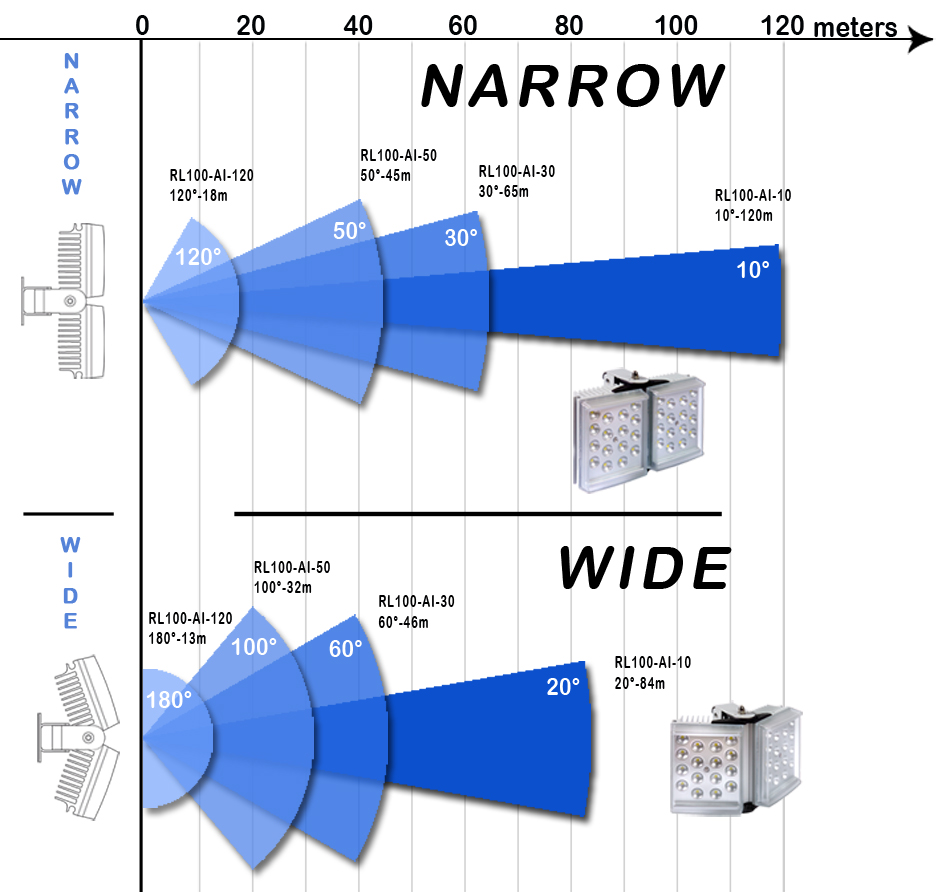

Please find below graphics showing all ANGLES and DISTANCES available for each illuminator with ranges from 8 to 1 000 meters and angles from 5 to 180+°.

> OUR PRODUCT RANGES ARE MOSTLY BASED ON POWER SUPPLY WANTED:
- "STANDARD": with external power supply unit (PSU) to power between 100-240V (graphics on white backgrounds)
- "FUSION"and "VARIO": with integrated power supply unit (PSU) to power in 12 V DC / 24 V AC (FUSIONS are on black backgrounds, VARIO distances in VARIO category)
- "PoE": with integrated power supply unit (PSU) to power on PoE / HIGH POWER PoE ("PoE" mention in graphic title)

> NOTES ON DISTANCES REACHED:
All distances are given in meters for cameras using a CCD active captor type of at least 1/3" or equivalent.
Using a passive CMOS captor type and / or a smaller captor size will give you less distance.
(i.e.: 1/4" CCD will give you less distance and 1/2" CCD should give you more distance, a 1/2" CMOS is usually equivalent to a 1/3" CCD).
If your camera is not sensitive enough you will have to oversize the IR illumination by selecting a superior model and / or reduce the number of images per second to compensate.

Our products are the top quality in the CCTV industry, built and hand mounted on demand to use the latest technology SMT LEDs.
It includes inbuilt power adjust from 10‐100%, inbuilt photocell for automatic on / off operation with adjustable sensibility, telemetry connection for remote operation...
All are IP66 weatherproof, Anti-Vandalism, usable between -50 / + 50°C and under 5 YEARS WARRANTY for an expected lifetime of 10+ years.
Products include cables and dedicated power supply unit. All have a universal bracket to fix on walls, ceilings or plates. To buy poles or PTZ fixtures, see our bracket section.

FAQ

RayLux 300
RayLux 300
