RayMax 25 IP - With PoE Input
Description
Send to friend

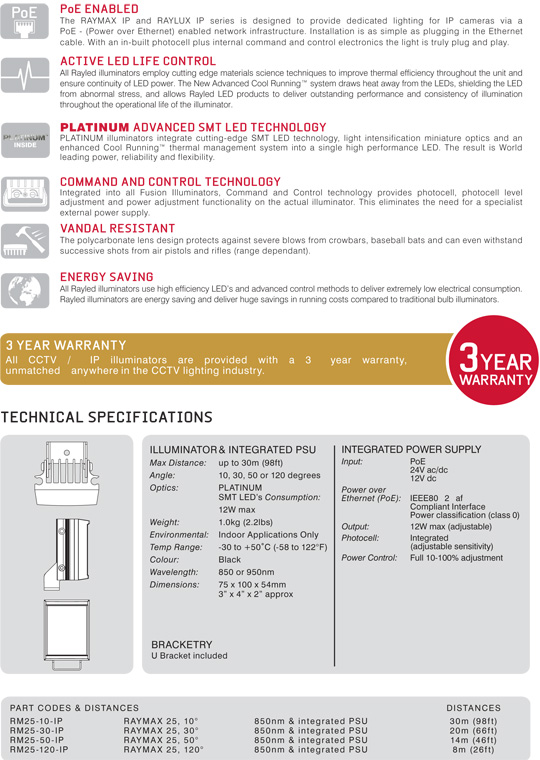

PDF Datasheet :
|

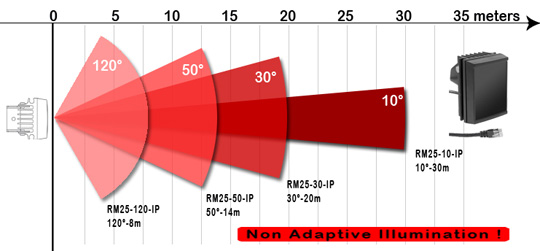

Dynamic IR chart :
|
The RAYMAX series of High Performance Infra-Red LED illuminators provide class leading performance, long life and ultra low maintenance. They incorporate the very latest surface mount LED’s to deliver excellent night-time pictures with improved optical output and outstanding reliability.
The RAYMAX 25 IP Infra-Red illuminator is designed to provide dedicated lighting for network cameras via a PoE (Power over Ethernet) enabled infrastructure. Installation is as simple as plugging in the PoE enabled network cable. With an in-built photocell plus internal ‘command and control’ electronics the RAYMAX 25 IP is truly ‘plug and play’.
Each unit is fitted with a Cool Running™ thermal management system to carefully control LED output and delivers a projected working life of 10 years. RAYMAX 25 IP is suitable for all internal low light installations up to 30 metres (98ft).
POWERFUL
• Distances up to 30m (98ft)
• PLATINUM LED technology
• Integrated PSU with Command and Control electronics
FLEXIBLE
• PoE input (or 12-24V)
• Various angles (10°, 30°, 50° or 120°)
• One click easy installation
RELIABLE
• 10 year life
• Active LED Life Control
• Vandal resistant
CONTROLLED
• Automatic operation via photocell
• Even Output Illumination
• Semi-Covert (850nm) or Covert (950nm) Options
The RAYMAX 25 IP Infra-Red illuminator is designed to provide dedicated lighting for network cameras via a PoE (Power over Ethernet) enabled infrastructure. Installation is as simple as plugging in the PoE enabled network cable. With an in-built photocell plus internal ‘command and control’ electronics the RAYMAX 25 IP is truly ‘plug and play’.
Each unit is fitted with a Cool Running™ thermal management system to carefully control LED output and delivers a projected working life of 10 years. RAYMAX 25 IP is suitable for all internal low light installations up to 30 metres (98ft).
POWERFUL
• Distances up to 30m (98ft)
• PLATINUM LED technology
• Integrated PSU with Command and Control electronics
FLEXIBLE
• PoE input (or 12-24V)
• Various angles (10°, 30°, 50° or 120°)
• One click easy installation
RELIABLE
• 10 year life
• Active LED Life Control
• Vandal resistant
CONTROLLED
• Automatic operation via photocell
• Even Output Illumination
• Semi-Covert (850nm) or Covert (950nm) Options
 |
