RayMax 100 - FUSION (12/24V)
Description
Send to friend

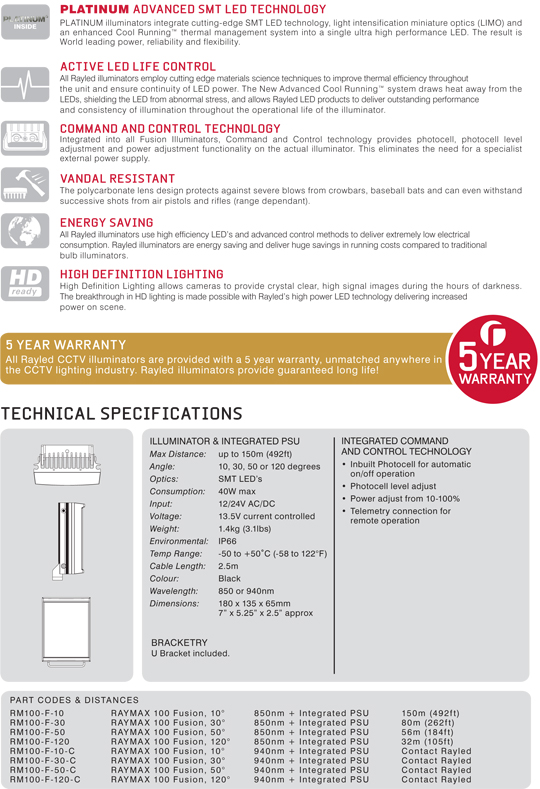

PDF Datasheet :
|
Dynamic IR chart :
|
12/24V AC/DC POWER SUPPLY INTEGRATED
 |
Please wait while 3D is loading ... You have mouse control |
Distances up to 150m (492ft)
PLATINUM LED technology
High power - low running costs
FLEXIBLE

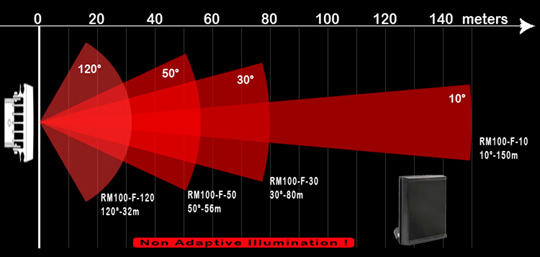

30, 50 or 120 degree variations
Integrated Fusion PSU with 12/24V AC/DC input
Command and Control technology™
RELIABLE
10 year life
Active LED life control
Vandal Resistant
CONTROLLED
Zero Light Pollution
Even Output Illumination
Semi-Covert or Covert Options
RAYMAX Fusion is a range of high performance Infra-Red illuminators designed specifically for low voltage installations. The illuminators provide class leading performance, long life and ultra low maintenance. They incorporate Rayled’s latest surface mount PLATINUM LED’s to deliver excellent night-time pictures with improved optical output and outstanding reliability.
The RAYMAX Fusion series has integrated Command and Control™ circuitry. Installation is quick and easy, requiring only a 12/24V AC/DC input.
Each unit is fitted with Active LED Life Control to carefully control LED output, delivering consistent illumination power and a projected working life of 10 years.
RAYMAX Fusion illuminators are supplied complete with bracket. Control features on the RAYMAX Fusion include adjustable power output, photocell and photocell adjust. RAYMAX 100 Fusion is suitable for all low light installations up to 150 metres (492ft).
The RAYMAX Fusion series has integrated Command and Control™ circuitry. Installation is quick and easy, requiring only a 12/24V AC/DC input.
Each unit is fitted with Active LED Life Control to carefully control LED output, delivering consistent illumination power and a projected working life of 10 years.
RAYMAX Fusion illuminators are supplied complete with bracket. Control features on the RAYMAX Fusion include adjustable power output, photocell and photocell adjust. RAYMAX 100 Fusion is suitable for all low light installations up to 150 metres (492ft).
