RayMax 200 - DOUBLE FUSION AI (12/24V)
Description
Send to friend

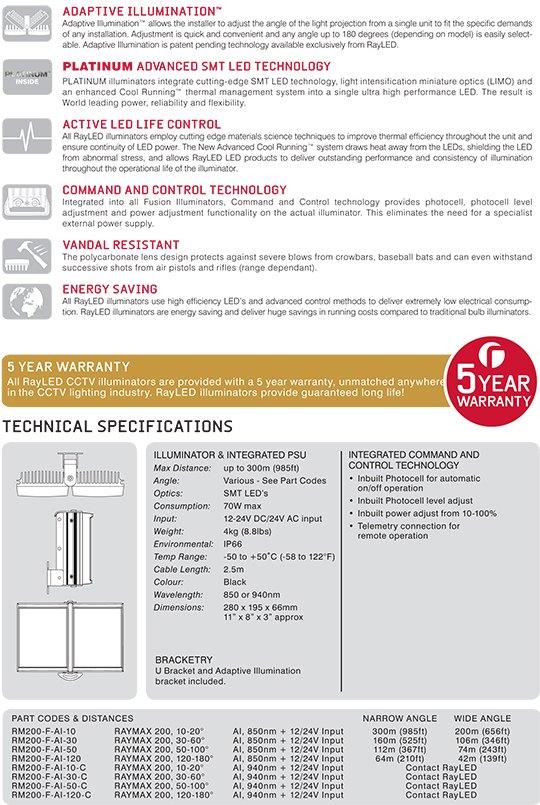

PDF Datasheet :
|

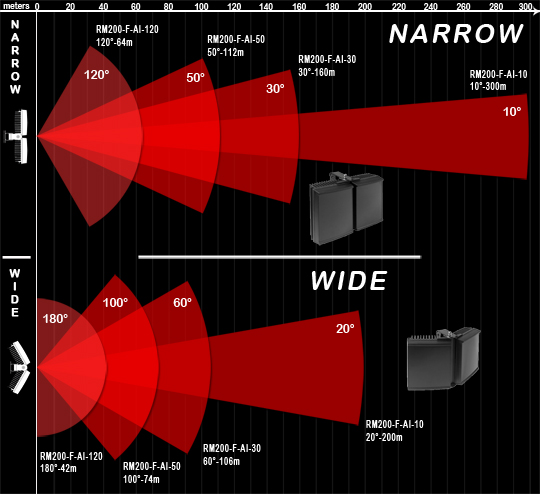

Dynamic IR chart :
|
12/24V AC/DC POWER SUPPLY INTEGRATED
POWERFUL
Distances up to 300m (985ft)
PLATINUM LED technology
High power - low running costs
FLEXIBLE
Adaptive Illumination™
Various angles (10° to 180°)
12-24V DC /24V AC input
Command and Control technology™
RELIABLE
10 year life
Active LED life control
Vandal Resistant
CONTROLLED
Zero Light Pollution
Even Output Illumination
Semi-Covert or Covert Options
FUSION Adaptive Illumination™ (AI) is a range of high performance Infra-Red illuminators designed specifically for low voltage installations. The illuminators provide class leading performance, long life and ultra low maintenance. They incorporate RayLED’s latest surface mount PLATINUM LED’s to deliver excellent night-time pictures with improved optical output and outstanding reliability.
The unique Adaptive Illumination™ concept provides the flexibility to alter the angle of illumination on site to suit specific security needs and to match the camera’s field of view. FUSION AI illuminators are also purpose designed to provide even output illumination.
The FUSION AI series has integrated Command and Control™ circuitry. Installation is quick and easy, requiring only a 12-24V DC /24V AC input with no need for a specialist PSU.
Each unit is fitted with Active LED Life Control to carefully control LED output, delivering consistent illumination power and a projected working life of 10 years.
FUSION AI illuminators are supplied complete with bracket Control features on the FUSION AI include adjustable power output, photocell and photocell adjust. Raymax 200 FUSION AI is suitable for all low light installations up to 300 metres (985ft)
The unique Adaptive Illumination™ concept provides the flexibility to alter the angle of illumination on site to suit specific security needs and to match the camera’s field of view. FUSION AI illuminators are also purpose designed to provide even output illumination.
The FUSION AI series has integrated Command and Control™ circuitry. Installation is quick and easy, requiring only a 12-24V DC /24V AC input with no need for a specialist PSU.
Each unit is fitted with Active LED Life Control to carefully control LED output, delivering consistent illumination power and a projected working life of 10 years.
FUSION AI illuminators are supplied complete with bracket Control features on the FUSION AI include adjustable power output, photocell and photocell adjust. Raymax 200 FUSION AI is suitable for all low light installations up to 300 metres (985ft)
