RayMax 300 - PLATINUM
Description
Send to friend
PDF Datasheet :
|
3D Product (click here)
|
Dynamic IR chart :
|
|
POWER SUPPLY INCLUDED
POWERFUL
Distances up to 700 m (1 unit)
Distances up to 1000 m (2 units)
Latest SMT LED Technology RELIABLE
10 year life
World Leading PLATINUM Technology
Cool Running™ thermal Management system
FLEXIBLE
Adaptive Illumination™
5-15°, 30-90°, 50-180°, 120-180°
Fully Controllable Power Supply
RELIABLE
10 year life
Cool Running™ thermal Management system
Vandal Resistant
CONTROLLED
Zero Light Pollution
Even Output Illumination
Semi covert or covert options
The RayMAX 300 PLATINUM is the latest generation of the RAYMAX series, designed specifically for long distance applications. RayMAX 300 PLATINUM provides World class performance, long life and ultra low maintenance. RayMAX 300 PLATINUM incorporates the very latest surface mount LED’s to deliver excellent night-time pictures with improved optical output and outstanding reliability.
The unique Adaptive Illumination™ concept provides the flexibility to alter the angle of illumination on site to suit specific security needs and to match the camera’s field of view. RAYMAX illuminators are also purpose designed to provide even output illumination.
Each unit is fitted with a Cool Running™ thermal management system to carefully control LED output and delivers a projected working life of 10 years.
RAYMAX illuminators are supplied with bracket and power supply. Control features on the power supply include adjustable power output, photocell and telemetry control. RayMAX 300 PLATINUM is suitable for all low light installations up to 1000 metres.

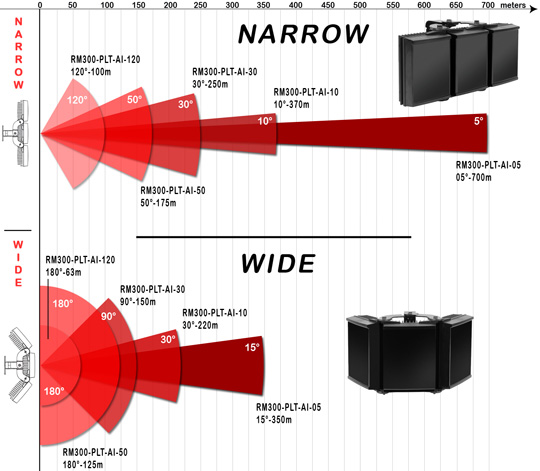

RayMax 300 - Adaptive Illumination
 |
Please wait while 3D is loading ... You have mouse control |

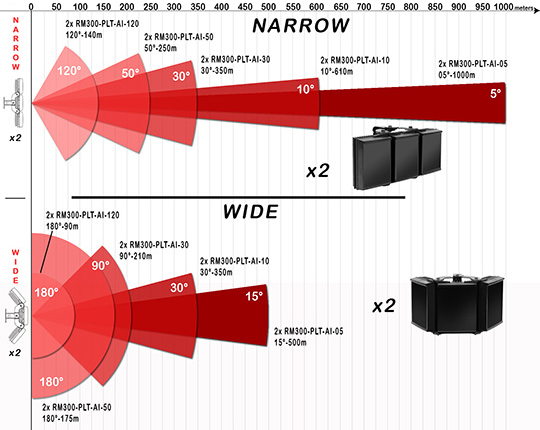

Up to 1000 meters with 2 x RayMAX 300 PLATINUM 5° :
Recommended camera : Panasonic 1/2" CCD Day/Night Camera WV-CLR934
